SISTEMI DI FISSAGGIO

FSTFZ \ MILLED WASHER, SCREW AND ANCHOR KIT FOR STRUCTURAL REINFORCEMENT NETS FIXINGS

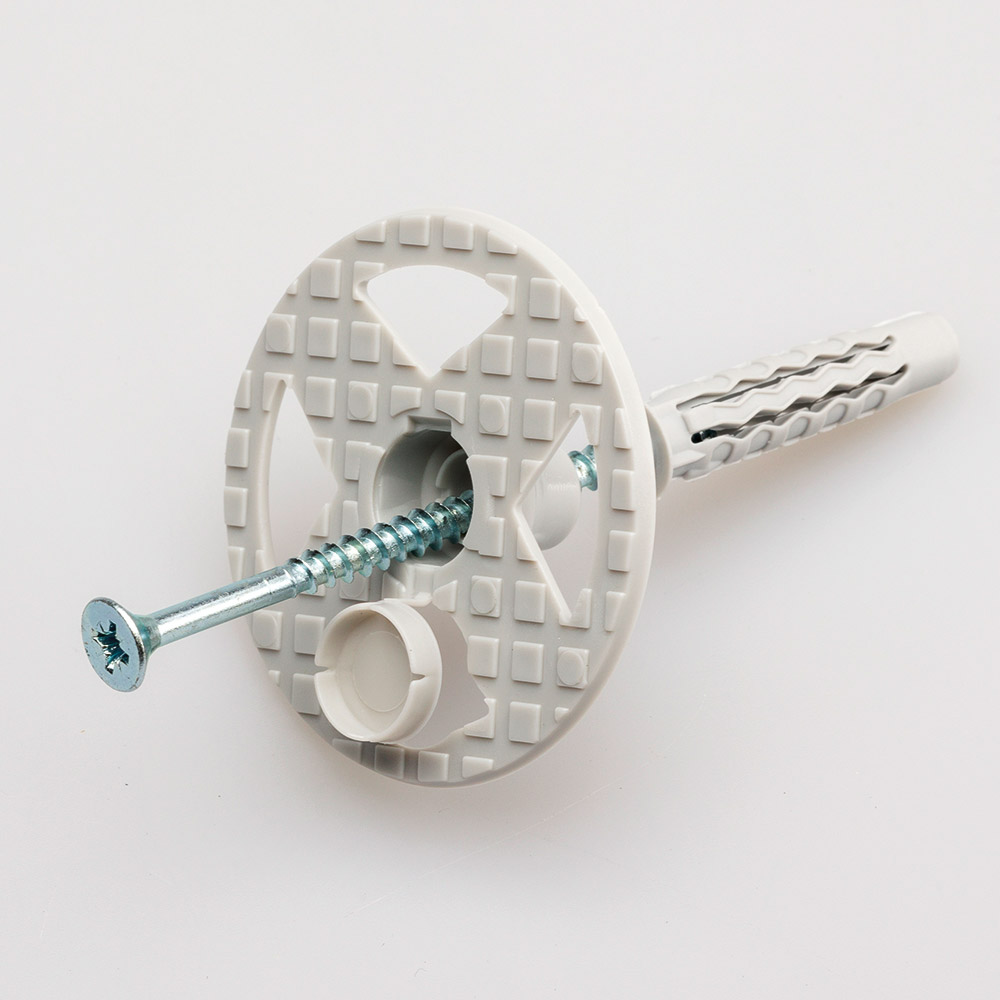

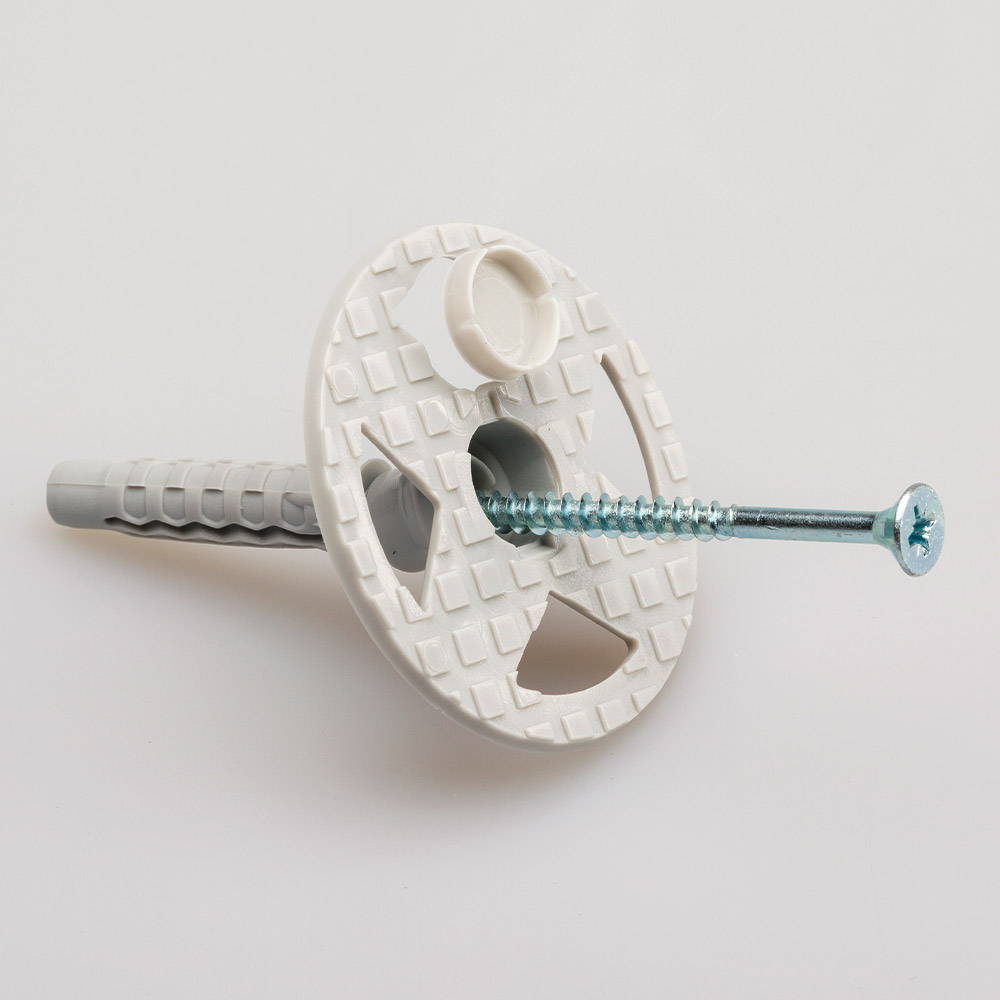

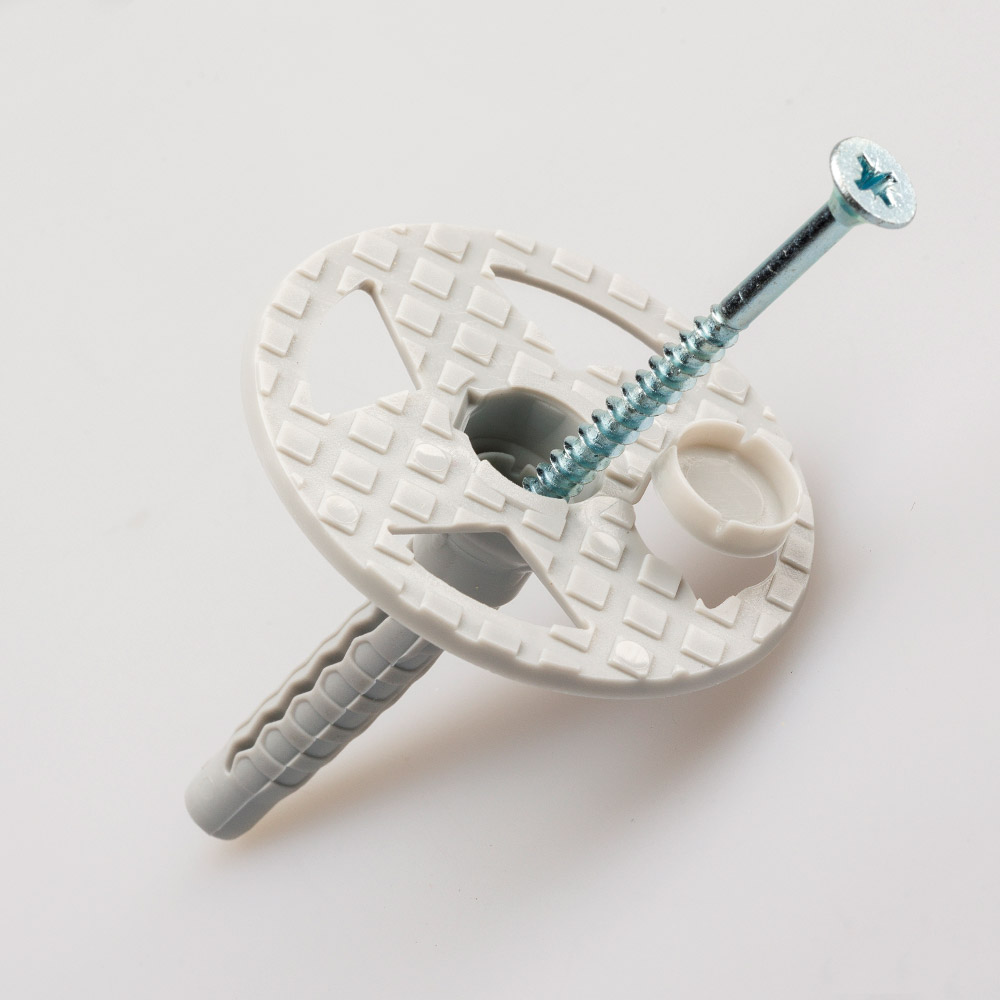

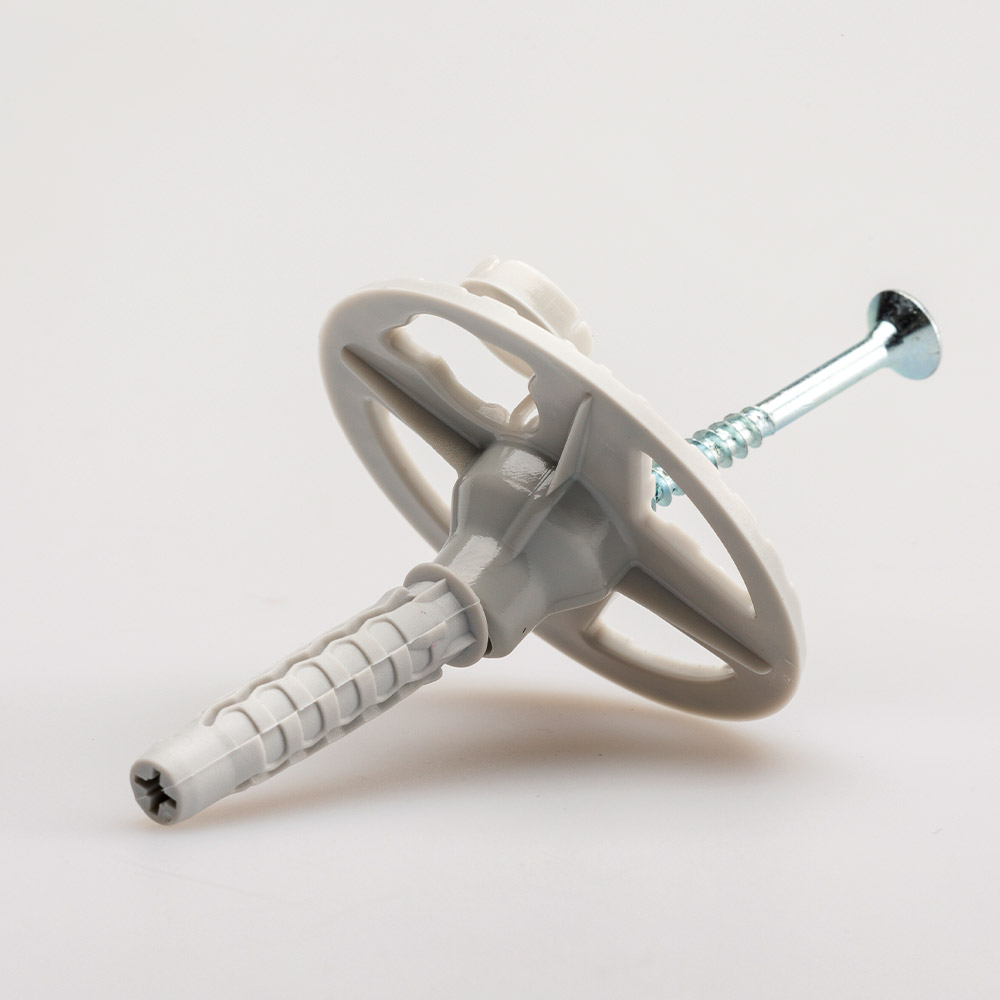

The FSTFZ fixing system is used to secure reinforced concrete ceilings and false ceilings. This type of work, done on all types of buildings in need of renovation, is very important in securing public buildings such as schools, cafeterias and hospitals. The system is made up of a Ø 68 mm disk with a cap, a 4 sector anchor in PA6 Nylon, and a Phillips flathead galvanized steel screw. In order to secure the structure, the system allows for the fixing of reinforced material meshes to the ceiling, which can then be finished with a plaster or appropriate resin grout or left naked. The disk’s closing cap allows for complete insolation in order to avoid thermic bridges and, in the case of visible structures, a pleasant design.

Description

Cod.Vite Ø XLPz. x confezioneConf. x scatolaScat. x pallet
FSTFZ08X0605X6050824
FSTFZ08X0705X7050824
FSTFZ08X0805X8050824
FSTFZ08X0905X9050824
FSTFZ08X1005X10050824
FSTFZ08X1105X11050824
FSTFZ10X0606X6050824
FSTFZ10X0706X7050824
FSTFZ10X0806X8050824
FSTFZ10X0906X9050824
FSTFZ10X1006X10050824
FSTFZ10X1106X11050824
FSTFZ10X1206X12050824
FSTFZ10X1306X13050824

View the technical sheet



Buy this product in the online store
